LS500 Screw Conveyor Equipment for Philippine
Release Date: 2022.12.12 Views: 12

Contract date: November 08, 2021

Feeding materials: Limestone powder

Capacity: 80TPH

Equipment: 1set of LS500 screw conveyor


Project information

The client was coming from Philippine, is the local mining and power corporation, looking for 1 set of screw conveyor equipment. Capacity: 80tph. Raw materials: dry limestone powder, feeding sizes: 100~14mesh. And with special requirement on feeding at middle part and discharging at both of end.


Technical Solution

According to the simple layout provided by the customer, some simple parameter requirements are given: production capacity, material particle size, etc. After calculation by the process engineer, LS500*10m screw conveyor equipment was recommended respectively, and the equipment engineer accordingly issued the basic outline structure drawing to confirm with the customer the important dimension parameters etc. on the general drawing. After confirming the drawings and basic parameters, detailed technical and commercial quotations, equipment photos, factory videos, etc. were provided to the customer for reference and understanding.

Finally, the two parties will sign the contract in early October 2021, and the goods will be delivered successfully in November 2021.Finally, the contract will be signed by both parties in the beginning of October 2021 and the goods was already delivered in November of 2021.


Equipment Technical Specification

No.

序号

Items

名称

Unit

单位

Parameter

参数

Remark

备注

1

Model

规格


LS500×10m


2

Screw blade outside diameter

螺旋叶外径

mm

500


3

Screw pitch

螺距

mm

400


4

Capacity

物料输送量

t/h

80


5

Output rotating speed

输出转速

r/min

46.6


6

Driving device

传动装置

cycloidal pinwheel gear reducer

model

摆线针轮减速电机型号


BWD39-25-11


Speed ratio

速比

i

25


Power

功率

KW

11


Voltage

电压

V

440


Frequency

频率

Hz

60

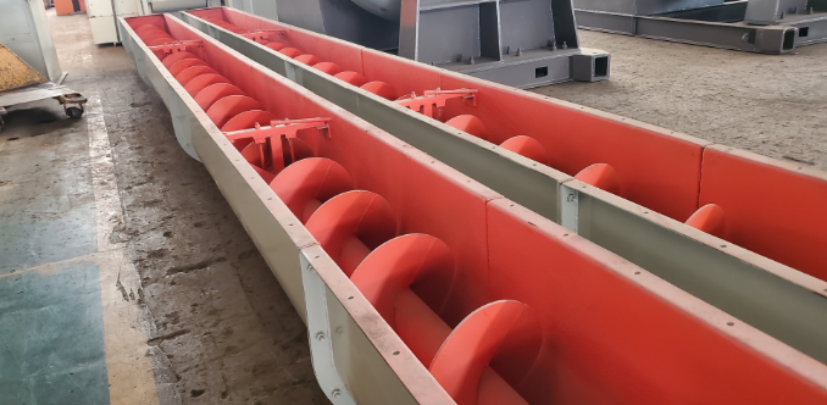

Equipment photos
