TH bucket elevator is a kind of centrifugal chain type elevator, which elevates bulk materials continuously in vertical direction. The material temperature cannot exceed 250 ℃.It has advantages of large capacity, stable operation, small floor space, largescope of lift height and easy maintenance.

    Innovation Makes Us a Leading Position in Future Market

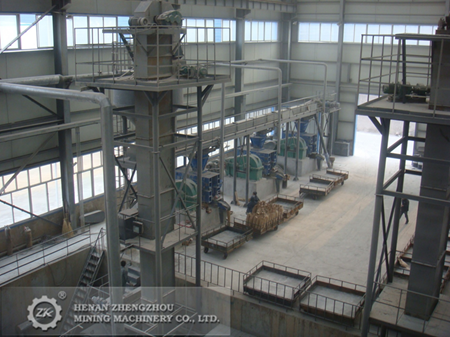

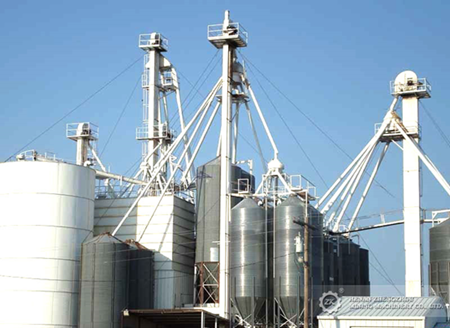

      The bucket elevator can be equipped in kinds of equipment or production lines, such as the electric vibrating feeder, the spiral conveyor, the vibrating screen, etc. It is also widely used the sand production line, mining plant, and cement production line, etc.

        Key benefits of TH Bucket Elevator

1.    It has flow-type feed, hopper-intensive layout, inductive-type discharge and large capacity with small drive power. There is few material returning and excavating. It is the reason why there is little reactive power.

2.    It has a wide scope of materials with good seal and environmental protection, not only suitable for powder materials, but also suitable for rubbed materials.

3.    What guarantees the elevator runs more than 20,000 hours with faults is its advanced design concept and working method.

4.    Flow-type feeding reduces the extrusion and crush between materials and bucket, which has improved the service life of elevator.

5.    The chain is made from alloy steel with high purity fine grain structure. (including Cr、Ni、Mo, 12CrNi3 high grade carburizing steel with quenchingand low tempering treatment)

6.    The max production tolerance of two matching chains is 0.05%. It keeps chains and related parts in good performance, even in the high-speed operation or heavy working condition.

7.    The improved chains have good toughness to prevent the breakage and medium and high stress abrasion, improve the operation rate and extend the service life.

8.    We offer you process design, technical guide and installation training for free.

9.    The non-return device in high reliability is equipped in the drive device, which can prevent traction parts and load hopper returning during the temporary interruption or halt with loading.

       Contact us to get your customized design

       We are adhering to the "people-oriented" core concept to give a professional service. Whatever you need, elevators or spare parts, we can provide a customized design for you.
