Pilot Production Line
  • Capacity
    Customized
  • Main Equipment
    rotary kiln, ball mill, rotary dryer, rotary cooler etc.
  • Appied Industry
    environmental protection, building materials, mining, and metallurgy etc.

Email : inczk@zkcorp.com Whatsapp : +86 173 9896 0706

Pilot Production Line
  • Product FEATURE
  • PRODUCTION PROCESS
  • PAPAMETER
Product FEATURE

Henan Zhengzhou Mining Machinery Co., Ltd. specializes in R&D and equipment manufacturing for environmental protection, building materials, mining, and metallurgy. We provide customized pilot production line services, offering end-to-end solutions from lab-scale research to industrial-scale production. Our pilot lines serve as the critical bridge to overcome the valley of death in technology transfer, empowering universities, research institutions, and enterprises to achieve seamless scale-up.

✔ Key Advantages
1. End-to-End Process Coverage
- Process Validation: Supports multi-stage simulations including crushing, screening, grinding, batching, granulation, drying, calcination, and cooling to replicate real-world production conditions.
- Smart Control: Integrated automation systems enable real-time monitoring of temperature, pressure, flow rate, and other parameters, ensuring data-driven process optimization.
- Eco-Efficiency: Incorporates waste heat recovery and low-energy designs for sustainable production.
2. Cross-Industry Adaptability
- Applicable to building materials (cement/ceramics), new energy materials, solid waste processing, metallurgy, and chemical industries, supporting interdisciplinary R&D validation.
- Modular design allows flexible customization in equipment selection, layout planning, and electrical system integration.
3. Industry-Academia-Research Collaboration
- Technology Commercialization: Accelerates the scale-up of lab innovations, mitigating risks in industrial adoption.
- Talent Development: Provides hands-on training in real production environments, fostering interdisciplinary expertise.

✔ Applications
1. Universities & Research Institutes: Establishes pilot platforms to bridge academic research and industrial deployment.
2. Corporate R&D Centers: Reduces trial production risks and shortens time-to-market
3. Government Industrial Parks: Supports regional industrial upgrading and high-tech project incubation.

✔ Service Commitment
1. Turnkey Solutions: Comprehensive services from design, manufacturing, and installation to commissioning and training.
2. Global Support: 24/7 technical consultation and remote maintenance for uninterrupted operation.

PRODUCTION PROCESS

This pilot line is designed to simulate industrial production processes, providing a reliable platform for experimentation and optimization in mineral and material processing. Through multi-stage process simulations—including crushing, screening, grinding, batching, granulation, drying, calcination, and cooling—it accurately replicates real-world production conditions, facilitating product development, process improvement, and parameter optimization.

✔  Core Process Stages

1. Crushing & Screening

   - Jaw crushing, hammer crushing, or impact crushing reduces raw materials (e.g., dolomite, limestone, bauxite) to target particle sizes.

   - Vibrating screens or air classifiers ensure precise particle size distribution for downstream processes.

2. Grinding & Batching

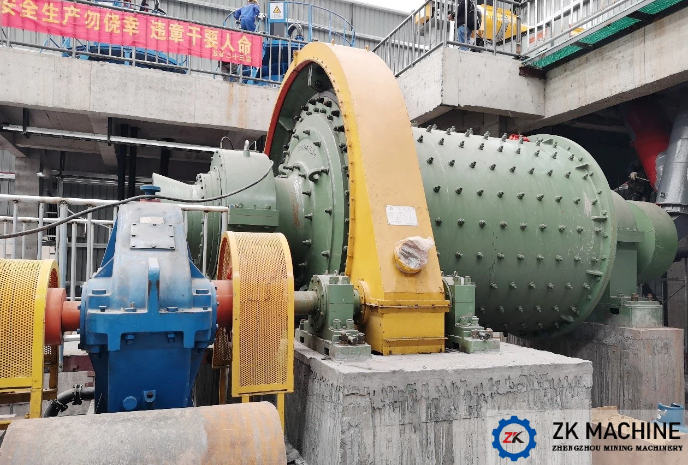

   - Ball milling or vertical milling further refines materials (e.g., kaolin, zinc oxide) to meet high-precision fineness requirements.

   - Dynamic batching systems enable accurate mixing of multi-component materials (e.g., cement clinker, LECA).

3. Granulation & Drying

   - Disc granulation or extrusion granulation transforms powders into high-strength granules (suitable for LECA, ceramic bodies, etc.).

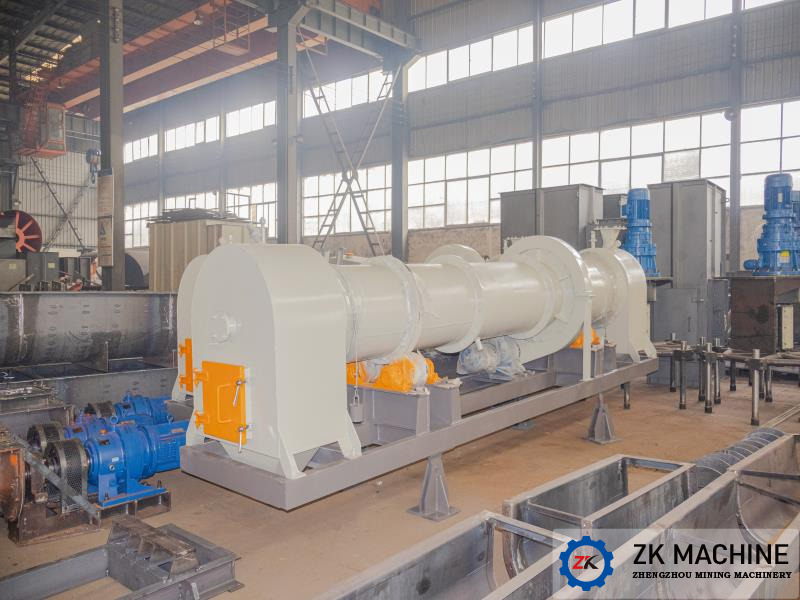

   - Rotary drying removes moisture, enhancing material stability.

4. Calcination & Cooling

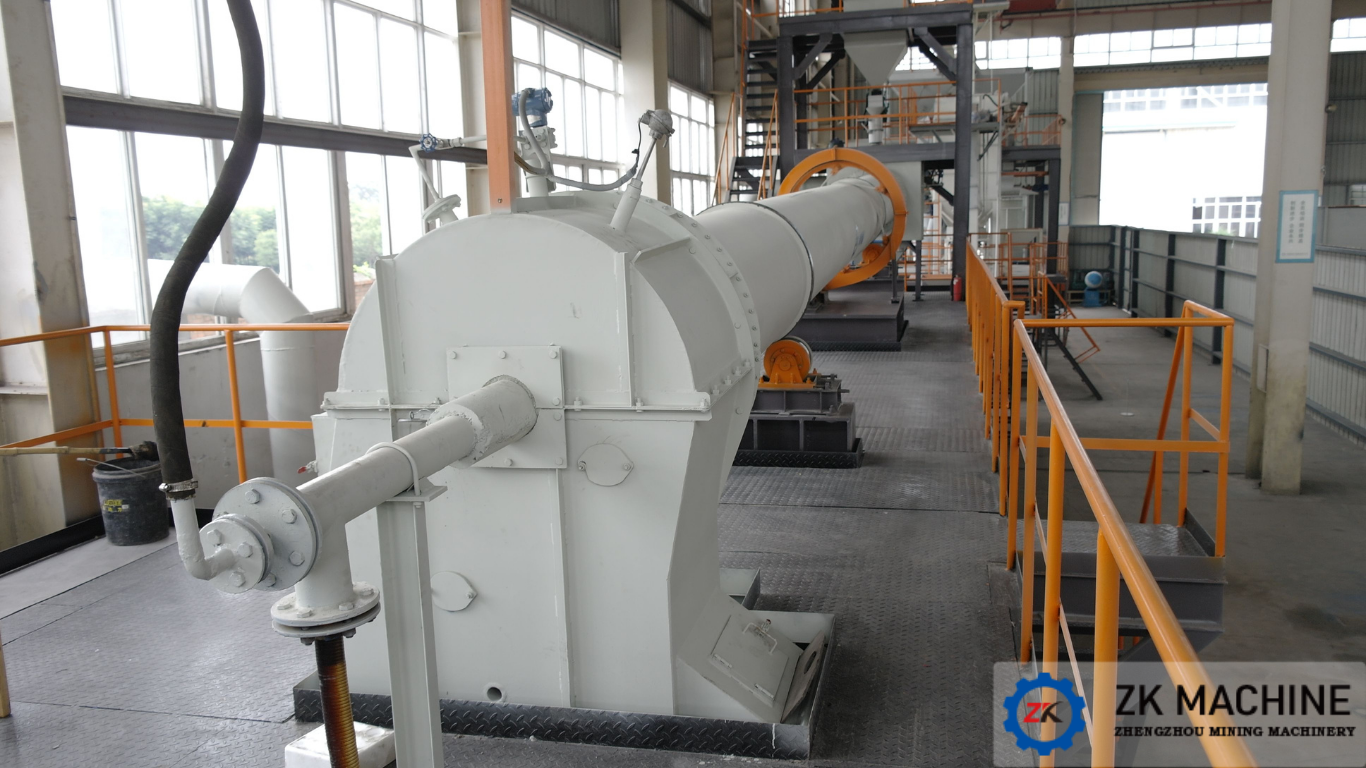

   - Rotary kiln calcination (e.g., magnesite for refractory products, limestone for active lime).

   - Rotary cooling systems tailor product properties (e.g., pore structure in LECA, mineral phases in clinker).

✔  Typical Processed Materials

- Non-metallic Minerals: Dolomite, limestone, kaolin, magnesite

- Metallurgical Raw Materials: Bauxite, zinc oxide

- Construction Materials: Cement clinker, lightweight expanded clay aggregate (LECA)

PAPAMETER

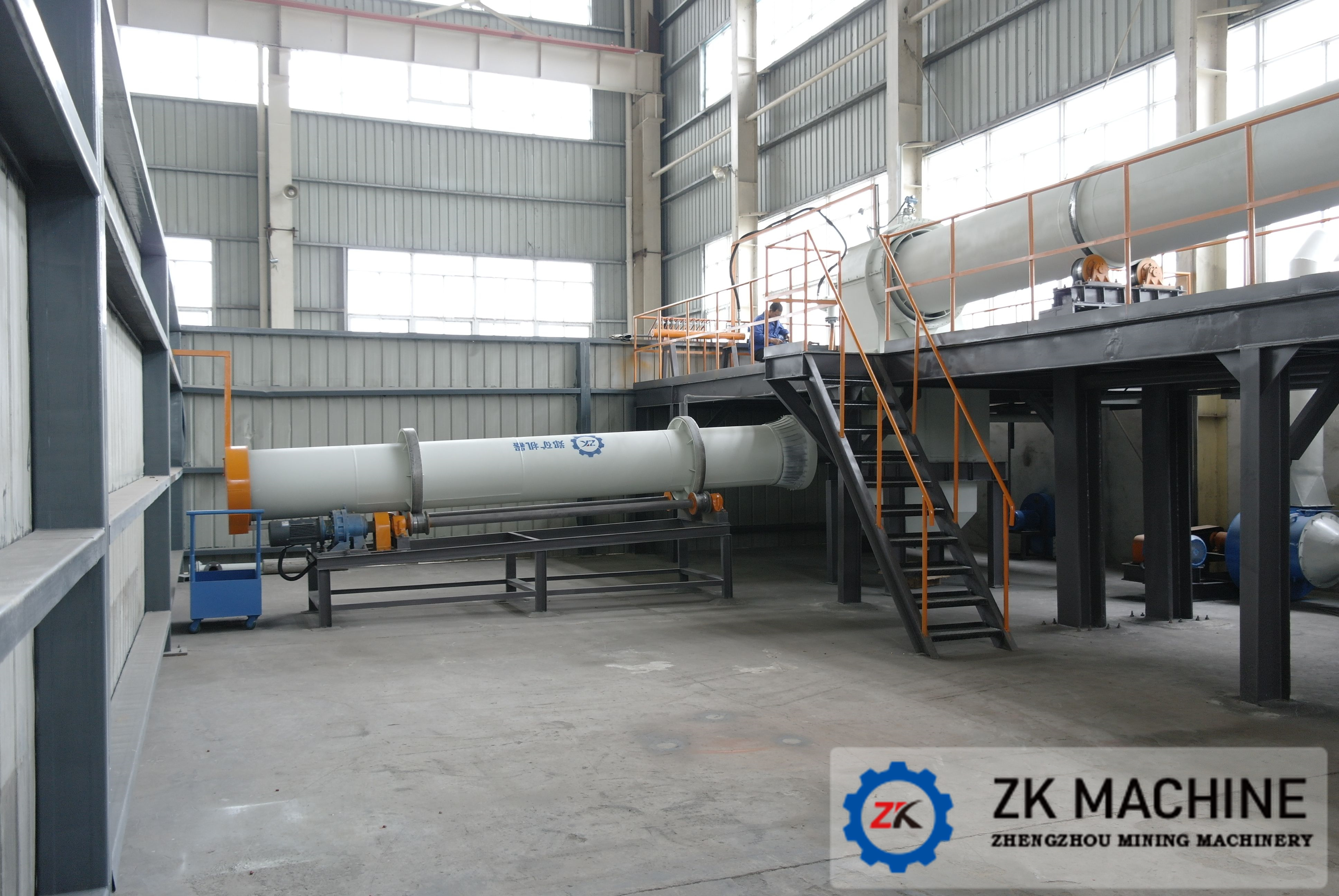

In order to meet the clients’requirement for technical research and development, reducing the R&D cost, and improving the success of industrial production for expended aggregate, ceramsite proppant, solid waste disposal, we, ZK Corp, had designed and built a pilot plant which including the grinding, granulating and clacining platform, which can do the raw materials analysis, formula designing, samples-making,calcination and pilot test for various building type expended aggregate,LECA,ceramsite proppant, and solid waste disposal etc.

This pilot plant includes raw materials crushing, grinding,mixing, granulating, drying (or solidifying), calcining, cooling, packaging, waste gas treatment, dust disposal, automation control, and waste gas on-line analysis etc, which forms a whole production process for Pilot test. The process of our pilot plant has the same process with the large-scale industrial production line. It has the advantages of wide application in different processes, high intelligence, less environmental pollution and less energy consumption etc.
